QUAD D.E.® FILTERS (Pentair)

Audio Accounts Products Images

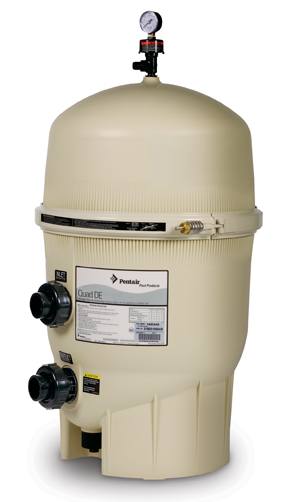

QUAD D.E.® FILTERS

Click here to view full image.
This product is part of
Pentair Product Catalog 2010
  • Description
  • Features
  • Notes
  • Request a Quote
  • Send to a Friend
The crystal clarity of D.E. with cartridge convenience.


Quad D.E.® Filters provide the highest water clarity of D.E. with the convenience and easy-cleaning features of a cartridge filter. Four easily accessible and removable D.E. cartridges greatly increases the filter's cleaning capacity. And, cleaning couldn't be easier. In fact, you have three options: backwash and recharge like a traditional D.E. filter, remove and rinse off the cartridges, or simply remove the lid, leave the cartridges in place, open the drain plug, and rinse.


An Eco Select™ Choice: Water flows very efficiently through Quad D.E.® Filters allowing the use of smaller pumps or lower pump speeds to minimize energy use. And when consumers rinse cartridges rather than backwash, they can significantly reduce water use, too.
  • Easily removable cartridge elements make maintenance fast and easy
  • Water flows through the Quad D.E.® Filters so efficiently that your pump will use less energy
  • Chemical resistant, fiberglass reinforced polypropylene tank for exceptional strength and long life
  • Four large-capacity cartridges provide maximum filter surface area for greater dirt-trapping capacity and longer periods between cleanings
  • Unique internal flow path ensures optimum filtration and backwashing efficiency
Valves must be purchased separately.
Product Information
Name:QUAD D.E.® FILTERS
Manufacturer:Pentair
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:(602) 795-6224
Fax:(602) 795-6916
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:QUAD D.E.® FILTERS
Manufacturer:Pentair
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Product Options


QUAD D.E. FILTERS (QUAD D.E.® FILTERS) [^top]
Qty Description   Our Price (USD)
Part#: 188592
FILTER AREA (SQ FT): Quad D.E. 60, EFFECTIVE FILTRATION AREA (SQ FT): 60, FLOW RATE (GPM): 120, TURNOVER CAPACITY (IN GALLONS) 8 HOUR: 57600, TURNOVER CAPACITY (IN GALLONS) 10 HOUR: 72000, TURNOVER CAPACITY (IN GALLONS) 12 HOUR: 86400, D.E. REQUIRED (LBS): 6
Request a Quote

Part#: 188593
FILTER AREA (SQ FT): Quad D.E. 80, EFFECTIVE FILTRATION AREA (SQ FT): 80, FLOW RATE (GPM): 160, TURNOVER CAPACITY (IN GALLONS) 8 HOUR: 76800, TURNOVER CAPACITY (IN GALLONS) 10 HOUR: 96000, TURNOVER CAPACITY (IN GALLONS) 12 HOUR: 115200, D.E. REQUIRED (LBS): 8
Request a Quote

Part#: 188594
FILTER AREA (SQ FT): Quad D.E. 100, EFFECTIVE FILTRATION AREA (SQ FT): 100, FLOW RATE (GPM): 160, TURNOVER CAPACITY (IN GALLONS) 8 HOUR: 76800, TURNOVER CAPACITY (IN GALLONS) 10 HOUR: 96000, TURNOVER CAPACITY (IN GALLONS) 12 HOUR: 115200, D.E. REQUIRED (LBS): 10
Request a Quote


ACCESSORIES (QUAD D.E.® FILTERS) [^top]
Qty Description   Our Price (USD)
Part#: 261173
1/1/2 in. MPV, for sand fi lters (SM 10-3)
Request a Quote

Part#: 261047
2 in. PVC Slide valve w/o plumbing, for D.E. & sand filters
Request a Quote

Part#: 261049
2 in. HiFlow valve, no plumbing
Request a Quote

Part#: 261050
2 in. HiFlow w/plumbing, for sand filters
Request a Quote

Part#: 261055
2 in. MPV, for sand filters (SM 20-3)
Request a Quote

Part#: 261165
2 in. PVC Slide valve for D.E. filters & sand filters
Request a Quote

Part#: 263034
2 in. ABS Slide valve
Request a Quote

Part#: 270100
Adaptor kit (for no valve assembly)
Request a Quote
